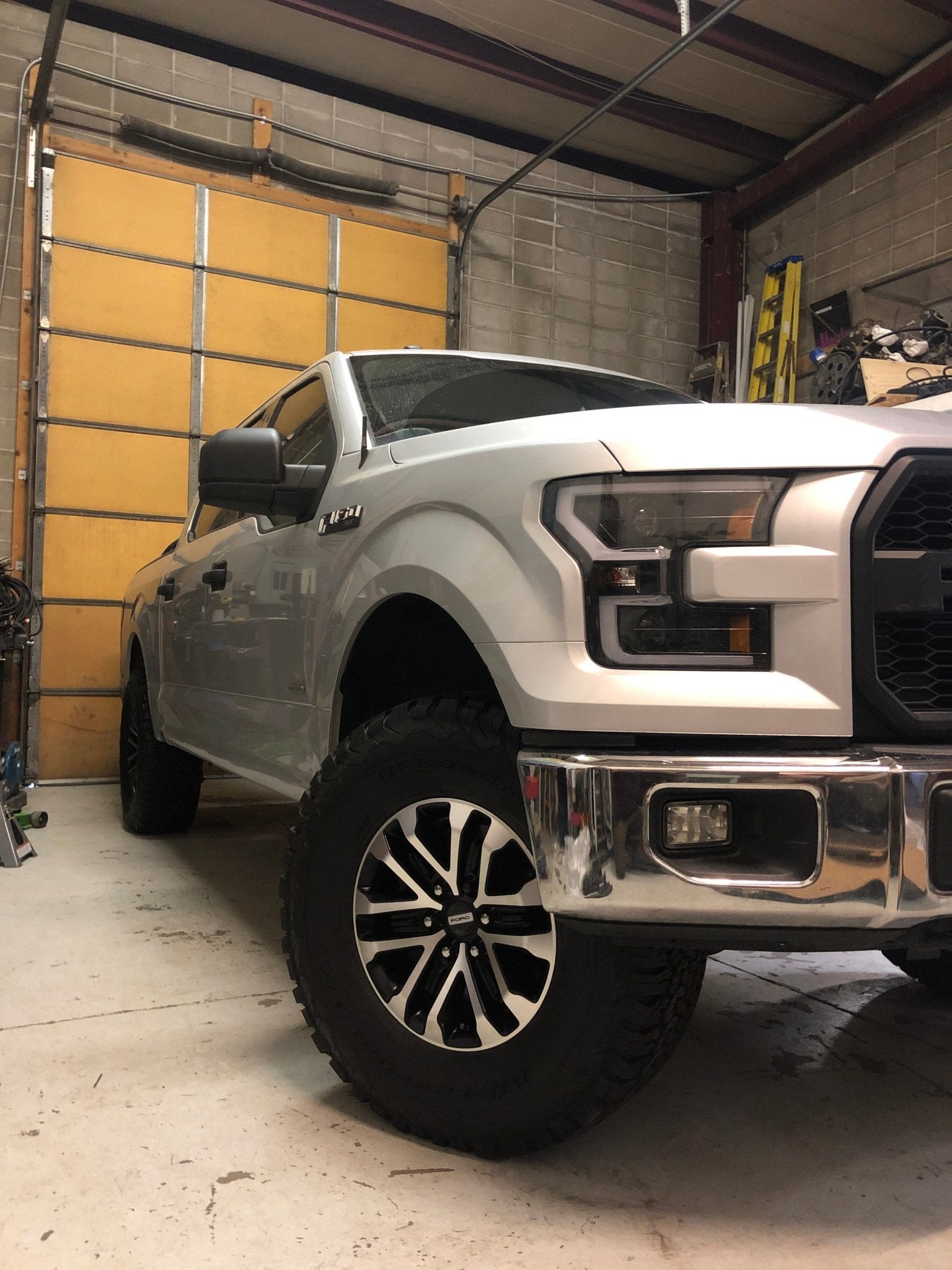

A Gen 13 (2015-2020) Ford F-150 with its puck lift swapped for Fox 2-inch leveling coilovers rides noticeably better and controls its suspension travel properly — running 35-inch BF Goodrich KO2s on 17-inch Raptor take-off wheels.
This Gen 13 Ford F-150 came into Juggernaut USA in Wheat Ridge (Denver), CO because the owner wanted a better ride. It was sitting on a puck (spacer) lift, which does the job of raising the nose but does nothing for how the truck rides. We pulled the puck, installed Fox 2-inch leveling coilovers, and finished it on 17-inch Raptor take-off wheels wrapped in 35-inch BF Goodrich All-Terrain KO2s.
| Spec | Detail |
|---|---|
| Vehicle | 2015-2020 Ford F-150 (Gen 13) |
| Suspension | Fox 2-inch leveling coilovers (replaced a puck/spacer lift) |
| Wheels | 17-inch Ford Raptor take-offs |
| Tires | 35-inch BF Goodrich All-Terrain KO2 |
| Result | Better ride, controlled travel, level stance on 35s |
Why we pulled the puck lift for Fox coilovers
This is the whole point of the build. A puck lift is a spacer that sits on top of the factory strut — it raises the nose, but it keeps the stock shock and, worse, it lets the strut over-extend on droop. That excessive down-travel means the strut is doing a job it was not designed for, topping out at full extension instead of being controlled. A Fox leveling coilover replaces the strut entirely with a purpose-built, properly valved unit set for the lift height. Two things change: the ride gets noticeably nicer, and the suspension travel is controlled the way it should be, so nothing is over-extending. On a truck the owner drives every day, that is the difference between a lift that looks right and a lift that also feels right and lasts.
35s on a 2-inch level: the Raptor wheels help
This F-150 runs 35-inch BF Goodrich KO2s on 17-inch Ford Raptor take-off wheels over the 2-inch Fox level. The Raptor wheels are part of what makes that work — their offset pushes the tire outboard, which buys clearance a standard F-150 wheel would not. Raptor take-offs are also one of the best value wheel swaps on a Gen 13 F-150: they are a genuine Ford off-road wheel, they clear the brakes, and they look the part without aftermarket-wheel money.
How it drives
Better, which is exactly what the owner came in for. The Fox coilovers took the harshness out of the puck-lift ride and gave the truck controlled, planted suspension travel. It sits level, clears the 35s, and drives like the lift was engineered instead of spaced.
Common questions on this build
Is a leveling coilover better than a puck or spacer lift?
For ride quality, yes. A puck keeps the factory shock and lets the strut over-extend on droop; a Fox leveling coilover is a purpose-built, properly valved strut that rides better and controls the suspension travel correctly.
How much does the Fox coilover level a Gen 13 F-150?
This one is a 2-inch front level — enough to kill the factory rake and clear a bigger tire.
Can a 2-inch-leveled F-150 run 35s?
This one does, on 17-inch Raptor take-off wheels. The Raptor wheel offset is what buys the clearance for a 35 on a 2-inch level.
