- Before the transmission skid plate is installed, the oil drain cover should be installed. Use the provided (4) ¼-20 bolts and washers to install the oil cover to the skid plate. See image below for location.
- Remove the felt skid plate (if equipped) and the rear mounting brackets on the outside of both sides of the frame rails.

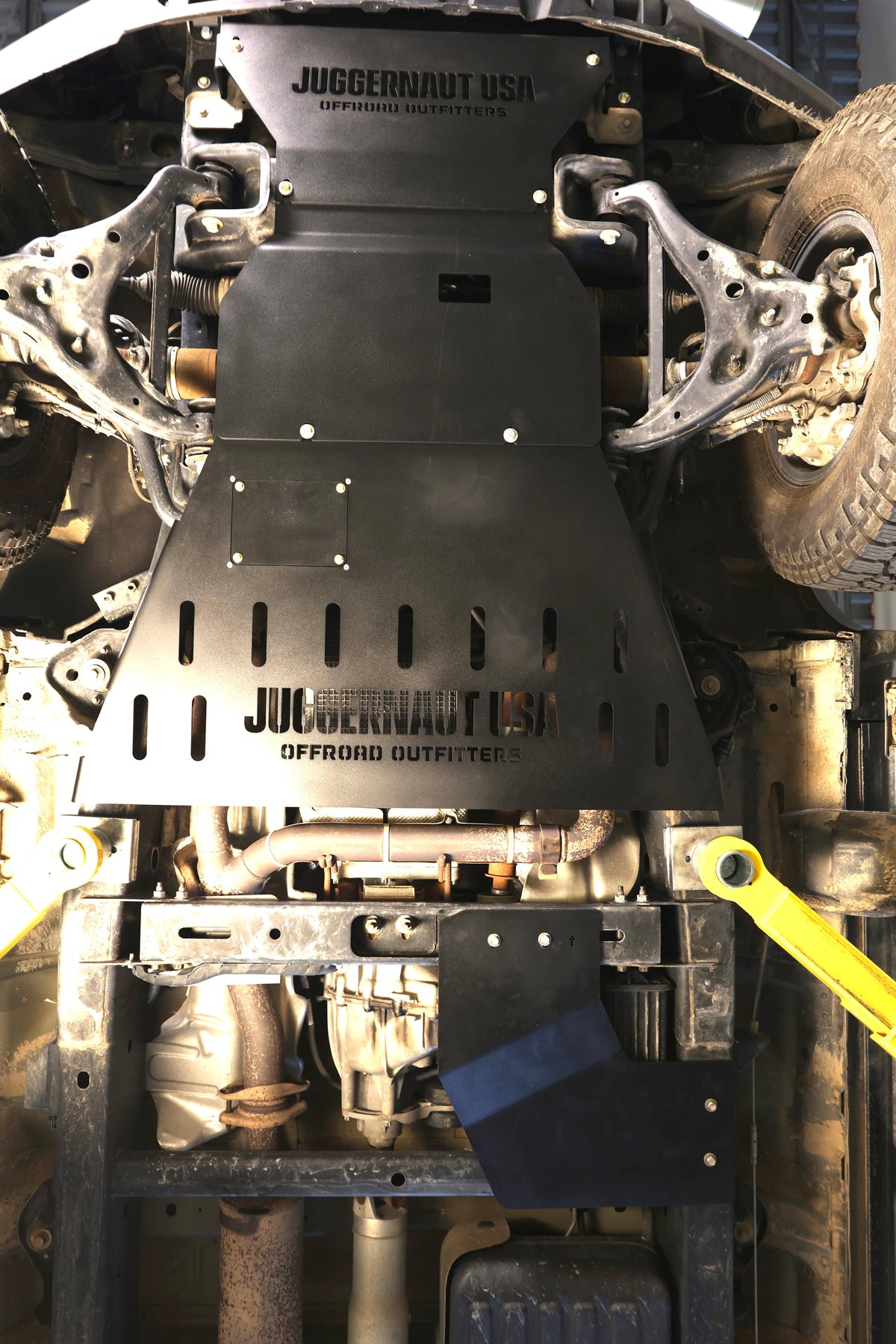

- The transmission skid plate will install where the rear mounting brackets were. Install the provided ⅜” clip nut on both sides. See picture below for locations.
- Once clip nuts are installed slide the transmission skid plate into the (2) loose ⅜” bolt on the engine crossmember above the engine skid plate.
- Secure the back of the skid plate with provided (2) ⅜” bolts on the frame rail.

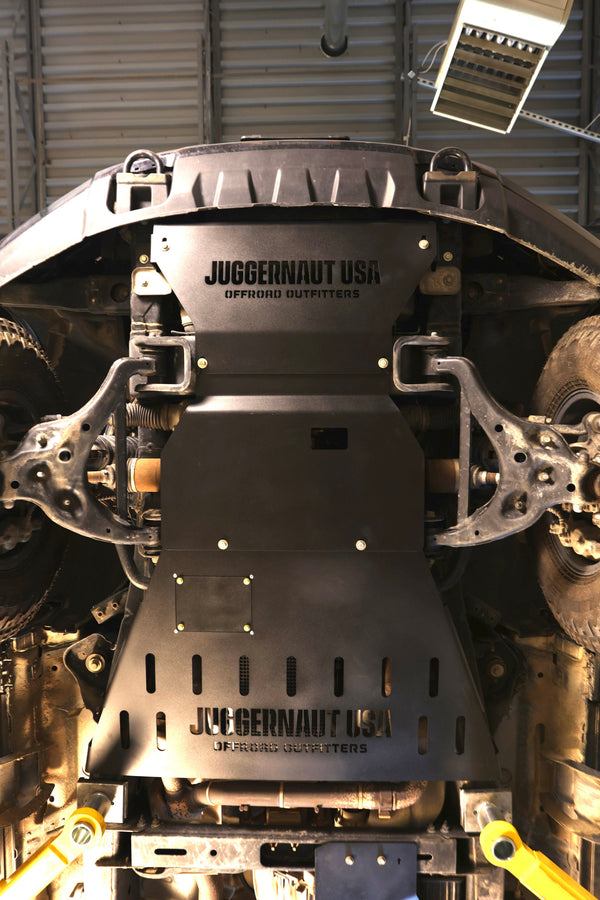

- Tighten the front and rear bolts to OEM specifications and the skid plate install is complete!
