2024-2027 Ford Ranger / Ranger Raptor Skid Plate Package
- Engine Skid Plate
- Transmission Skid Plate & Cat Shield
- Transfer Case Skid Plate

Factory Ranger skids are thin stamped steel that leave the transmission, catalytic converters, and transfer case exposed. Full coverage is four bolt-on 1/4″ 5052-H32 aluminum plates — here’s what each protects, and what fits the Raptor too.
Factory Ranger skids are thin stamped steel that stop at the front — the transmission, catalytic converters and transfer case ride exposed behind them.
Full coverage is four bolt-on plates in 1/4″ 5052-H32 aluminum: engine, transmission with cat shield, transfer case, and fuel tank.
The Ranger Raptor has its own fitment on some pieces and its own guide, so confirm which truck you have before ordering.
The 2024–2027 Ford Ranger is the most capable Ranger yet — and from the factory, most of its drivetrain is running exposed. The stock underbody pieces are thin stamped steel and plastic that cover some of the engine bay and not much else: the transmission, catalytic converters, and transfer case all take their chances with whatever the trail or highway throws up. This guide covers what the factory setup actually protects, what it misses, and how to build full coverage — plate by plate or all at once. We manufacture every plate here in Colorado from 1/4″ 5052-H32 aluminum, so this is the honest walkthrough we’d give you at the counter.
Jump to what the factory misses, coverage plate by plate, Ranger Raptor fitment, the install, or the FAQ.
Ford ships the Ranger with a plastic air dam and splash shielding up front, and on trucks with the off-road hardware, a set of stamped-steel plates. They look reassuring on the window sticker. Underneath, two problems show up fast: the steel is thin enough to fold on a real hit, and the coverage stops where the expensive parts start.
And here’s the one that surprises most Ranger owners: the transmission doesn’t get a skid plate from the factory at all — no matter the trim or package. The trans pan, the catalytic converters — a four-figure theft target on modern trucks — and the transfer case all sit bare.
That’s the gap this lineup fills: not replacing a bad factory plate, but covering everything the factory never covered in the first place.
The foundation. Covers the oil pan and the front of the engine bay in 1/4″ 5052-H32 aluminum, with mounting to factory points. This is the plate that takes the first hit on any approach angle.

The one we’d run first if you’re choosing — because the factory gives the transmission nothing. The transmission plate doubles as a shield over the catalytic converters — which matters twice: cats are exposed to strikes, and they’re what thieves come for. A bolted plate over them is the most effective catalytic converter protection there is: it turns a ninety-second sawzall job into not worth it.

The lowest-hanging hard part on a 4x4 Ranger, and the one that ends trips when it cracks. The transfer case plate closes out the driveline.

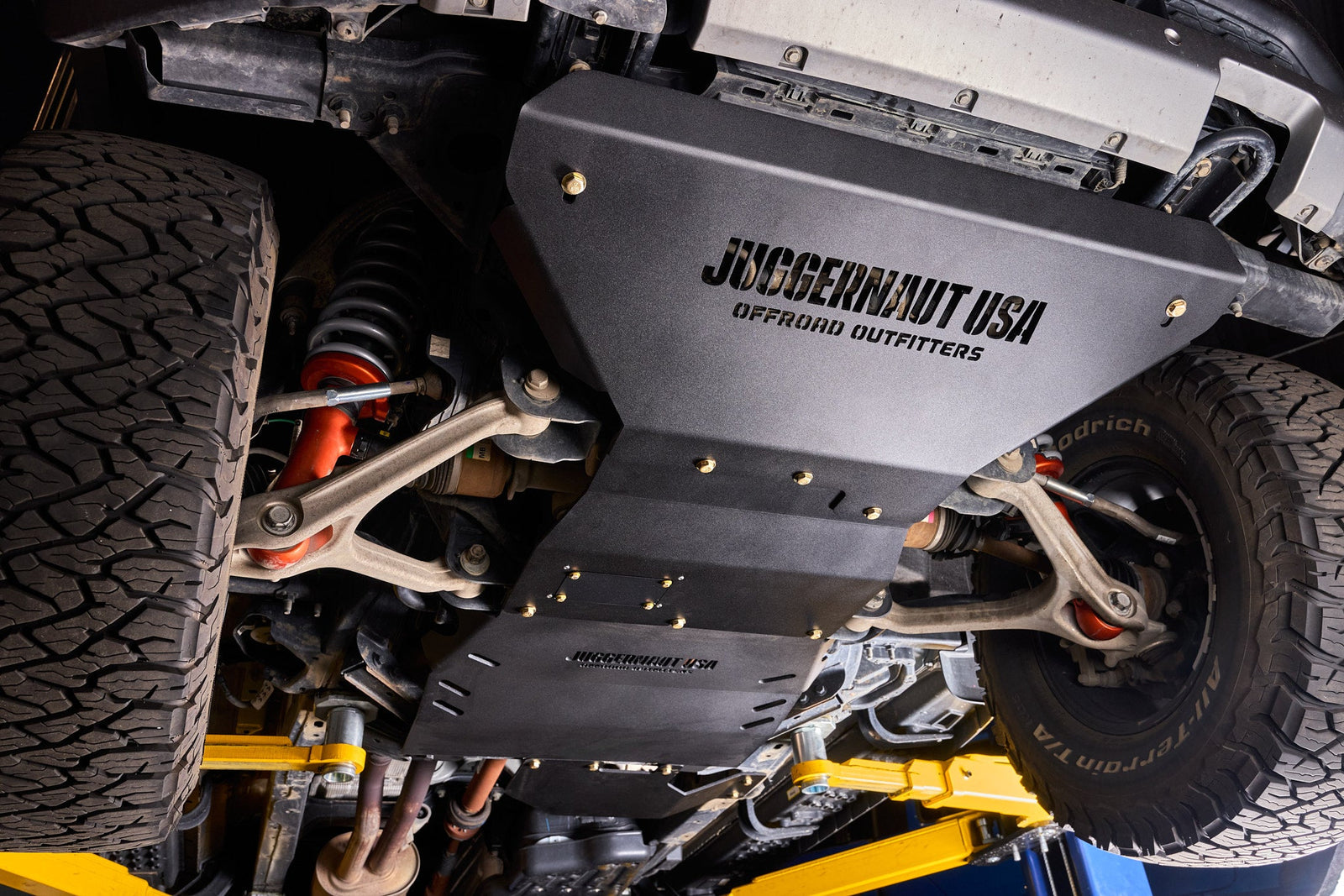

All of the above in one kit — the Ranger skid plate package covers engine, transmission + cats, and transfer case front to back. If you’re building the truck for trails or overlanding, this is the configuration most Ranger owners land on.

Good news: the Raptor shares its underbody mounting with the standard truck, so every plate on this page fits your Raptor. The Raptor also gets one extra option — a dedicated fuel tank skid plate — and its own deep-dive: our Ranger Raptor skid plate guide covers what the factory Raptor skids miss and how to spec the full setup for a truck that actually gets driven like a Raptor.
Every plate is a true bolt-on to factory mounting points — no drilling, no cutting. Common hand tools, and the package goes on in an afternoon in a driveway. Honestly, there’s no step that catches people out on this one — we designed these to bolt on easy, and that’s how they go on. Watch the full install video or follow the written step-by-step instructions. In the Denver area? Our Wheat Ridge shop will do it for you.
| Spec | Every Juggernaut Ranger plate |
|---|---|
| Material | 1/4″ 5052-H32 aluminum (marine-grade) |
| Finish | Powder-coated black |
| Mounting | Bolt-on to factory points — no drilling |
| Oil changes | Drain access without removing the plate |
| Fits | 2024–2027 Ranger & Ranger Raptor, all trims |
| Warranty | Lifetime — made in Wheat Ridge, Colorado |
Does the 2024+ Ford Ranger really need skid plates?
If it ever leaves pavement — or parks on a street where catalytic converters get stolen — yes. The factory pieces are thin stamped steel covering a fraction of the underbody; the transmission has no factory plate at all, and the cats and transfer case are exposed too.
Isn’t the factory off-road package protection enough?
It’s better than nothing, but the plates are thin and the coverage stops short of the driveline. For gravel roads it’s fine; for rocks, ruts, and real trails it isn’t what protects the expensive parts.
Do these plates fit the Ranger Raptor?
Yes — the 2024–2027 line fits both the standard Ranger and the Ranger Raptor. The Raptor also has a dedicated fuel tank plate option; see the Ranger Raptor guide.
What about my 2019–2023 Ranger?
Unfortunately these don’t fit the older generation — the 2024+ Ranger has a different frame. If you have an earlier Ranger, call or text us and we’ll tell you what your options are.
Is 1/4″ aluminum strong enough?
At 1/4″, 5052-H32 aluminum takes about 38% more force to permanently bend than a 3/16″ steel plate, at roughly half the weight — and it can’t rust. The full math is in our aluminum vs. steel guide.
Can I still change my oil with the plates on?
Yes — drain access is built in, no plate removal required.
Shop the full Ranger skid plate collection — made in Colorado, bolt-on, Limited Lifetime Manufacturer's Warranty. Not sure what your trim needs? Email sales@juggernautusa.com or call (970) 341-4221 and we’ll confirm fitment before you buy.
Shop your plates below, or email sales@juggernautusa.com with your year and trim and we’ll spec it.
Standard Ranger or Raptor — same plates The 2024–2027 Ranger and Ranger Raptor share their underbody mounting, so every plate in this guide fits both trucks. The Raptor adds one extra option — a dedicated fuel tank skid plate — covered in our Ranger Raptor guide. Note: these don't fit 2023-and-older Rangers — the older generation has a different frame.
Plate by plate or the full package — made in Wheat Ridge, Colorado, bolt-on, Limited Lifetime Manufacturer's Warranty. (970) 341-4221 · sales@juggernautusa.com
