On a ProMaster the engine, transmission and catalytic converter sit close enough that a single front plate protects all three. What that covers, and why front-wheel drive changes the exposure.
The ProMaster is front-wheel drive, which stacks the engine, transaxle and converter into the front third of the van — the same area that makes contact first on a hard approach. That concentrates the risk, but it also means one correctly shaped front plate covers all three, where most vehicles need separate parts. Theft risk is the standard tall-van profile: no jack needed, parked outside, sitting unattended. On a camper the real cost of a stolen converter is the tow and the wait, not the part.
A Ram ProMaster catalytic converter shield is a bolt-on plate that covers the converter and the exhaust pipe on both sides of it, so a thief can't reach the cut points that free the part. On the ProMaster it comes as the front skid plate — one 1/4" aluminum plate that covers the engine, transmission, and converter together — so the converter is protected as part of the plate, not a separate piece. And because the ProMaster is front-wheel drive, that converter sits up front and out in the open, where a plate cut for this van does the job far better than a thin universal guard.
Jump to: The FWD packaging problem · Why work vans get hit · The two cut points a plate has to cover · Material and fit for this van · Upfits, floors, and the front skid · ProMaster FAQ
Most trucks a thief crawls under are rear-wheel drive: the engine sits up front, and the exhaust with the converter runs back down the middle of the frame, partly tucked behind crossmembers and driveline. The Ram ProMaster is different. It's front-wheel drive, so the whole powertrain — engine, transaxle, and the converter right behind it — is packaged low and forward, ahead of and between the front wheels. There's no driveshaft tunnel routing the exhaust rearward and no rear axle geometry to work around.
That changes where the converter lives and how reachable it is. Unlike a body-on-frame pickup with full-length frame rails, the ProMaster is a unibody van on a front subframe, and the converter is close-coupled behind the transverse engine — low, below the floor pan, ahead of and between the front wheels. It hangs down in the open at the front rather than tucked up inside the frame. A plate for this van has to be shaped for that front FWD layout — a guard designed around a rear-drive truck's mid-frame exhaust run won't sit where the ProMaster's converter actually is.
What it means: the ProMaster's front-drive design puts the converter somewhere convenient for you to protect but also convenient for a thief to reach — which is exactly why the plate has to match this van's geometry.
Packaging is half of it. The other half is that the ProMaster is a work van, and work vans live where converters get stolen. They park overnight in fleet yards, on the street, and in lots where nobody's watching. They sit tall off the ground, so a thief can slide under — or in many cases reach the converter while crouched next to the van — without ever jacking it up.
A van already loaded with tools is a target, and the converter is the fastest thing to take off it. The cut runs a minute or two with a battery saw. Then the van is down, in a shop, not earning — and for a work van that downtime usually costs more than the part.
For the bigger picture on why these thefts happen and how plates deter them, see our what is a cat shield guide and the full catalytic converter theft protection overview.
A converter doesn't come off in one piece from the middle. A thief cuts the exhaust pipe on both sides of the converter and lifts the section out. So the plate's whole job is to block those two cut points, not just cap the converter body. A guard that only covers the middle leaves the pipe open on either end, and the part still walks.
On the ProMaster's front-drive layout those two cut points sit close together up front, which is good news for a fitted plate: one properly shaped plate can wrap the converter and reach the pipe on both sides. It doesn't have to be uncuttable. It has to make a straight shot at either pipe impossible, so the cut turns slow, loud, and awkward — and most thieves move to the easier van.
Two things decide whether a ProMaster plate actually protects: what it's made of, and whether it's cut for this van or strapped on generic.

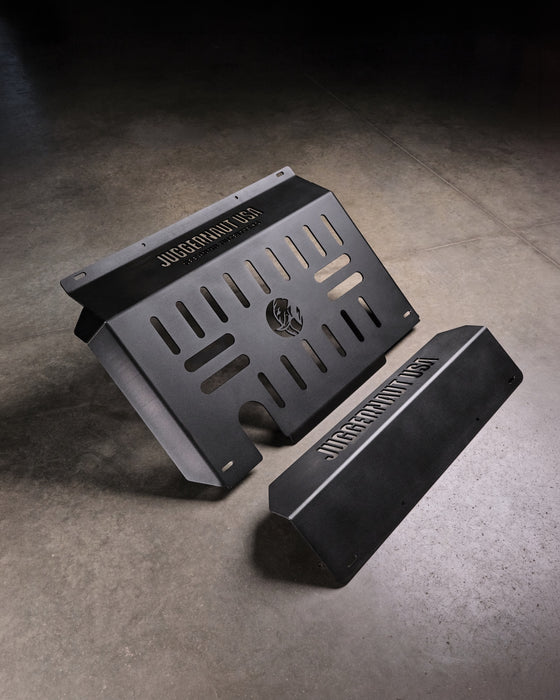

On material, a lot of "cat shields" are thin stamped sheet metal or a cage of wire and cable. They add a step, but thin sheet cuts almost as fast as the pipe it's guarding, and a cable cage gets peeled or snipped. Our ProMaster plate is 1/4" 5052-H32 aluminum — CNC plasma cut, folded on a press brake, MIG welded where needed, and powder coated, all in-house in Colorado. Quarter-inch aluminum resists a saw blade far longer than sheet metal, won't rust like steel, and is light enough that it isn't loading down the front of a front-drive van where weight sits over the drive wheels.
On fit, a universal guard is cut to a generic shape and strapped or drilled to whatever it can grab — which on a FWD van means gaps, rattles, and holes drilled into your underbody. A plate cut for the ProMaster lines up with the factory mounting points and wraps the converter and pipe the way they actually sit on this van, tight to the underbody with no easy edge to pry.
Fitment splits two ways on the ProMaster, and both come down to how the van is built. The first is the transmission: 2021-and-earlier vans run the 6-speed and 2022-and-newer vans switched to the 9-speed, and the exhaust routing behind it changes with it — so we cut a different plate for each. The second is the active air dam under the front of the van: some ProMasters have it and some don't, so there's a yes/no option to clear it. Pick the transmission year and the air-dam option that match your van and the plate lines up; get either wrong and it won't sit right.
One thing that is not a separate version to worry about: the plate clears the second alternator, so vans built with the dual-alternator setup — common on RV and high-electrical-load builds — take the same plate.
| What matters on a ProMaster | Juggernaut 1/4" aluminum front plate | Thin universal shield / cable cage |
|---|---|---|
| Shaped for FWD front converter location | Cut to the ProMaster's front powertrain layout | Generic; built around rear-drive mid-frame exhaust |
| Covers both pipe cut points | Converter and pipe on both sides | Often only the converter body |
| Resists a saw | 1/4" 5052-H32 plate — slow, loud, awkward to cut | Cuts nearly as fast as the pipe |
| Mounts to the underbody | Factory mounting points, tight to the underbody | Straps or drilled holes; rattles and gaps |
| Also covers engine + transmission | Yes — one front plate covers all three | No — converter area only |
| Corrosion after a Colorado winter | Aluminum won't rust; powder coated | Steel rusts; coatings chip |
For the full material breakdown, see aluminum vs steel skid plates.
The ProMaster is rarely still an empty van by the time someone's protecting it — it's a camper build, a fleet service van, or a cargo upfit. The good news is the front plate lives entirely underneath, at the front of the van near the powertrain, so it doesn't touch anything you've built inside. A subfloor, bed platform, water tank, or cabinetry sits above the floor pan; the plate bolts to the underbody below it. Nothing about a camper conversion or shelving upfit gets in its way, and installing it doesn't mean pulling your build apart.
It's a bolt-on plate that mounts to the ProMaster underbody with hand tools — a job most owners can do on ramps or a jack and stands, or hand to any competent shop. It goes up following the install video and printed instructions that come with it, so you're not guessing at the sequence. Once it's mounted it wraps the converter and pipe and stays clear of the exhaust so heat still escapes.
Because it's the front skid plate, this one plate already covers the engine and transmission along with the converter — protecting the converter and armoring the front underbody are the same purchase. For the full underbody picture, including what sits behind the front plate on a heavy van build, see the Ram ProMaster skid plate guide. For what the bolt-up itself involves, see cat shield installation: what's involved.
Where is the catalytic converter on a front-wheel-drive ProMaster?
Up front. Because the ProMaster is FWD, the engine and transaxle sit low and forward between the front wheels, and the converter is right behind the engine — not routed back down the middle of the frame the way a rear-drive truck's is. That's why the plate is shaped for the front of the van, and why a guard built for a rear-drive exhaust run doesn't fit it.
Does it work with a camper conversion or cargo upfit?
Yes. The plate bolts to the underbody at the front of the van, entirely below the floor pan. A subfloor, bed platform, tanks, or shelving all sit above it, so it doesn't interfere with anything you've built inside and you don't have to disturb the build to install it.
Which ProMaster model years and configurations does it fit?
It's made for the ProMaster, not a universal shape. Two things decide which version you need: the transmission (2021-and-earlier 6-speed vans vs 2022-and-newer 9-speed vans route the exhaust differently) and whether your van has the active front air dam, which has its own yes/no option. It clears the second alternator, so the dual-alternator setup isn't a separate fit. Confirm the transmission and air dam on the product page before you order.
Is the converter shield separate from the engine and transmission skid plate?
No — on the ProMaster it's the same plate. The front skid plate covers the engine, transmission, and catalytic converter together in one piece of 1/4" aluminum, so you protect all three at once rather than buying a separate cat shield. See the Ram ProMaster skid plate guide for the full front-underbody picture.
Does covering the front converter trap exhaust heat?
No. The plate is positioned to clear the exhaust and let heat escape — it's a protective plate, not an enclosure. It doesn't wrap the pipe tightly or change how the system breathes.
Does it stop theft completely?
No plate is uncuttable, and we won't claim otherwise. What it does is block a straight shot at both pipe cut points so the cut turns slow, loud, and awkward — enough that a thief moves to an easier van. On a row of parked work vans, being the harder target is what keeps yours whole.
Why aluminum instead of steel on a van?
Quarter-inch 5052-H32 aluminum resists a saw well, won't rust, and is lighter than steel — which matters on a front-drive van where added weight sits over the drive wheels. More on the trade-off in aluminum vs steel skid plates, or browse the catalytic converter protection collection.
Shop your plates below, or email sales@juggernautusa.com with your year and trim and we’ll spec it.
Free shipping, lower 48 · guaranteed fit or we cover return shipping · cut, welded and coated in Wheat Ridge, CO
Fitment varies by model year, wheelbase, and roof height. Always confirm your exact configuration before ordering — we check fitment free with every quote.
The ProMaster front plate covers the converter — plus the engine and transmission — in one bolt-on 1/4" aluminum piece, reaching the pipe on both sides.
