How Much Do Skid Plates Cost? Real Prices From a Shop That Makes and Installs Them.
Aluminum skid plates run $300–$835 per plate and $910–$1,285 for a full package, with installation adding about an hour of shop labor per section. Here's the full cost breakdown, the DIY math, and what underbody damage costs when there's nothing protecting it — from a Colorado manufacturer that publishes every price.
Three things move the price: how much of the underbody you cover, the material and thickness, and whether shipping is included.
Buying a package costs less than the same plates individually, because the freight consolidates into one shipment.
Ours are 1/4″ 5052-H32 aluminum with free continental-US shipping and a lifetime warranty, so the listed price is what you pay.
Aftermarket aluminum skid plates cost $300–$835 per plate, and full-coverage packages run $910–$1,285. Professional installation adds roughly an hour of shop labor per plate section on top of that — though most bolt-on plates are a realistic DIY job with hand tools, which makes labor optional. This guide breaks down real prices — ours, published openly — plus what drives cost up or down, what factory replacement shields cost, and what the repair bill looks like when there's nothing under the truck at all.
We're in an unusual position to answer this: we manufacture skid plates in Wheat Ridge, Colorado and run a full-service 4x4 install shop, so we see both the price tag and the labor ticket on every job. All prices below are current as of July 2026.
Jump to: Cost by plate type · Packages vs. piece-by-piece · Installation labor · Factory shield replacement · What damage costs instead · What drives the price · Methodology · FAQ
Skid plate cost by type
Our full catalog, actual list prices (1/4" 5052-H32 aluminum, powder-coated, lifetime warranty):
| Plate type | Price range | Notes |
|---|---|---|
| Engine / oil pan skid plate | $299.95–$729.95 | $489.95 on most truck platforms. The Raptor plate is less ($299.95, smaller piece — the factory already covers the front); the Sprinter AWD is more ($729.95, van-sized) |
| Transmission skid plate + cat shield | $429.95–$764.95 | Upper end = hybrid (PowerBoost) and Raptor fitments |
| Transfer case skid plate | $369.95–$529.95 | 4WD/AWD vehicles only |
| Fuel / gas tank skid plate | $609.95–$834.95 | Upper end = long-bed 48-gallon tanks |
| Catalytic converter guard | $625.95 | Theft + impact protection (Sprinter shown; cat shields are built into our transmission plates on most trucks) |
| Van-specific armor (RV generator, battery pack, front skid) | $534.95–$1,034.95 | ProMaster / Sprinter / Winnebago & Thor RV applications |

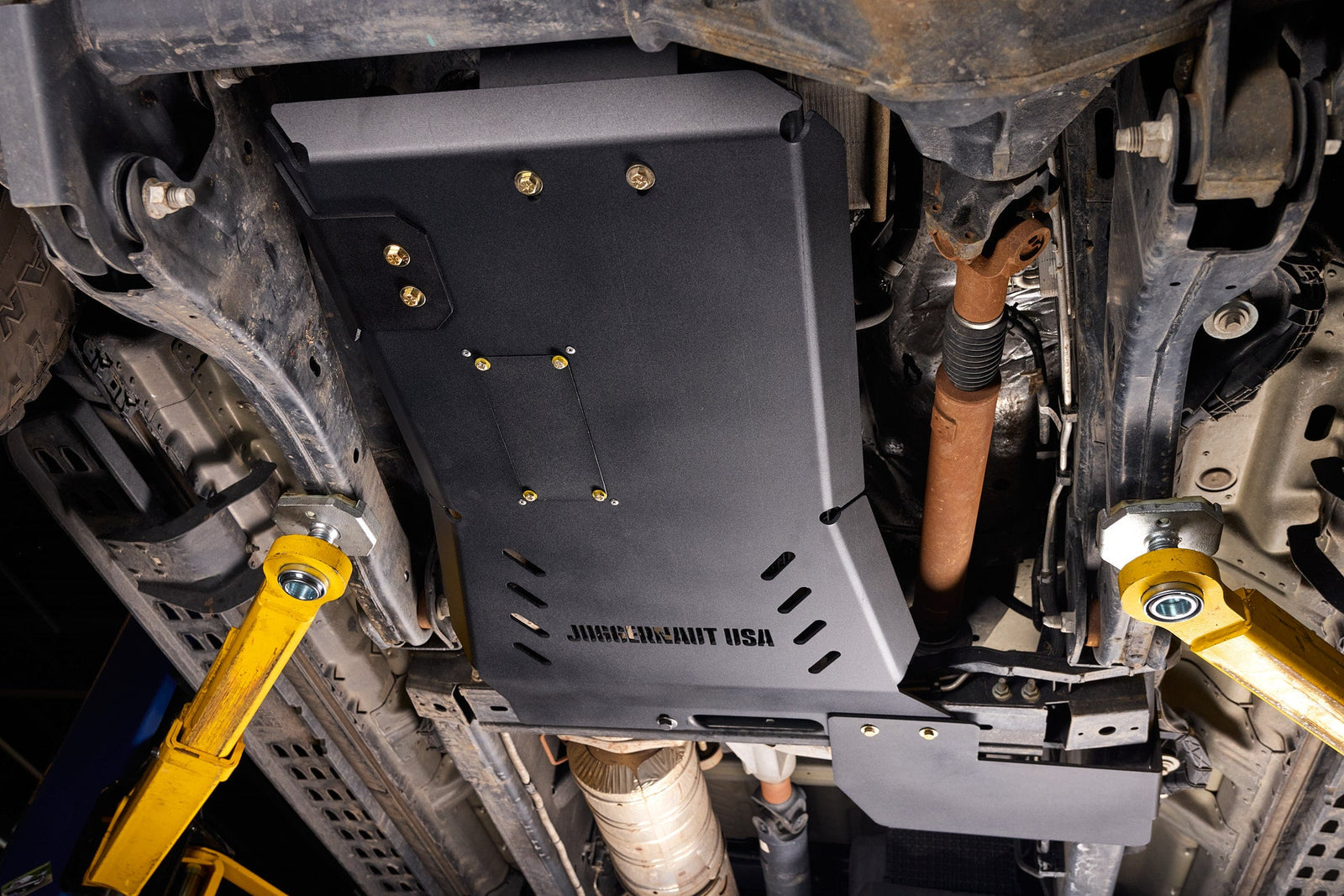

| Full skid plate package | $909.95–$1,284.95 | Engine + transmission + transfer case coverage. Most truck packages are $1,219.95; the F-150 ($909.95) and Super Duty ($959.95) are lower because those packages bundle two plates rather than three. Optional configurations (a Raptor with our front skid instead of the factory one) run higher |
Cheaper plates exist — thinner 3/16" aluminum, imported steel, or plastic composite can run $100–$400 per plate. The price difference is material and coverage, which we break down below and in depth in our aluminum vs. steel comparison.
Packages vs. buying piece by piece
Buying plates individually for a typical 4WD truck (engine $489.95 + transmission/cat $589.95 + transfer case $369.95) totals $1,449.85. The same coverage as a package runs $1,219.95 — packages price about 16% under the sum of their parts because they ship and pack as one kit. If you know you want full coverage, the package is the cheaper path; if you want to spread the cost, most owners start with the engine plate (lowest-hanging, most expensive component behind it) and add rearward.
Installation labor — what to budget
The rule of thumb across the industry: budget roughly an hour of labor per skid plate section. A single engine plate is about an hour on a rack; a three-piece package is closer to three. Multiply that by whatever your local shop charges per hour and you'll land close to a real quote — that estimate travels better than any dollar figure we could give you, because shop rates vary enormously by region.
Two things pull the real number below a straight hours-times-rate calculation. First, most skid plates go on during a visit that was already happening — a lift, a set of tires, a scheduled service. The truck is already in the air, so the plates share rack time instead of booking their own. Second, bolt-on plates mount to existing frame points, so there's no fabrication, drilling, or alignment in the ticket. Vans and hybrid trucks run toward the upper end; a single plate added to a job already on the rack is the low end.
Or pay nothing: every plate we make bolts to existing frame points with no drilling, and most owners install them at home with a jack, stands, and metric sockets. That makes professional labor a convenience, not a requirement — which is not true of bumpers, lifts, or most other underbody work.
For a Denver-area install quote on your specific vehicle, call or text (970) 341-4221.
The other meaning of "skid plate replacement cost" — factory shields
If you searched this because a panel is hanging down under your truck: that's usually the factory splash shield, and on many trucks it isn't metal at all. Ford's F-150 transmission shield, for example, is a felt-like composite that soaks up water, sags, and eventually drags — one of the most common underbody complaints on owner forums. Replacing a factory plastic or composite shield with the same part at a dealer is typically a parts-counter item plus shop labor, and you get back exactly the part that just failed.
The math most owners eventually do: a like-for-like factory shield replacement costs real money and fails the same way again, while a bolt-on aluminum plate in the $370–$610 range replaces it permanently, with a lifetime warranty. That's the actual decision behind "replacement cost" — replace in kind, or replace with armor. Our F-150 guide covers the felt-shield problem in detail.
What you're pricing against: the repair bill without protection
The honest way to evaluate a $500–$1,400 spend is against what it prevents:
- Catalytic converter theft: $1,000–$3,500 to replace a stolen converter, per Carfax — versus a shield in the $590–$630 range. Full breakdown in our catalytic converter protection guide, and the national claim data in our theft statistics report.
- Oil pan strike: a cracked pan means immediate oil loss; if the engine runs dry, the repair conversation starts at a replacement engine — five figures on a modern turbo truck.
- Driveline damage: a differential or transfer case repair after an underbody strike runs from several hundred dollars into the low thousands. Severe cases go through insurance and cost considerably more.
- Trail recovery: the cost nobody prices — a truck disabled by a rock strike two hours from pavement. Recovery and towing from trail country routinely exceeds the cost of the plate that would have shrugged the hit.
What actually drives skid plate pricing
- Material. Plastic composite is cheapest and protects least. Steel is cheap per pound but heavy and rust-prone. Aluminum costs more per pound but protects at half the weight and never rusts — the trade-offs are quantified in our aluminum vs. steel breakdown.
- Thickness. 3/16" aluminum is the market norm; 1/4" (what we run) uses a third more material and resists deflection accordingly. Thickness is the spec cheap plates quietly shave.
- Coverage area. A small engine shield and a full-belly system are different products. More coverage = more aluminum = more cost, roughly linearly — which is most of why a van plate costs more than a truck plate.
- Finish. Bare aluminum is cheaper to sell and oxidizes gray in a season. Powder coat adds real manufacturing cost — ours is standard, many brands charge for it or skip it.
- Where it's made. Domestic manufacturing costs more than importing, but it's also why we can run a lifetime warranty — the shop that made your plate can also remake it.
Methodology
Product prices are Juggernaut USA list prices as of July 2026, including free continental-US shipping, and every one of them is live on the linked product pages — you can check them. Installation-time estimates reflect standard industry practice rather than any single shop's rates, which vary widely by region. External cost figures are cited to their sources inline. We manufacture and sell skid plates, so read the framing accordingly; the prices themselves are published openly either way.
Frequently asked questions
How much does a full set of skid plates cost?
For full engine-to-transfer-case coverage in 1/4" aluminum: $909.95–$1,284.95 as a package, depending on platform, with most trucks at $1,219.95. Adding a fuel tank plate runs another $609.95–$834.95.
How long does it take to install skid plates?
Budget about an hour of labor per section — roughly an hour for a single engine plate, closer to three for a full three-piece package. That's the estimate to take to any shop; multiply by their hourly rate.
How much does it cost to have skid plates installed?
Estimate an hour of shop labor per plate section at your local rate. Plates that go on during a visit already booked for other work cost less, since the vehicle is already on the rack. Bolt-on plates are also DIY-friendly, so that cost is optional — call or text (970) 341-4221 for a Denver-area quote.
Are cheap skid plates worth it?
A $150 plastic shield is better than nothing for gravel spray, but it fractures on real impact. If the truck leaves pavement, the honest minimum is metal; the material trade-offs are covered in our aluminum vs. steel guide.
Why are aluminum skid plates more expensive than steel?
Aluminum costs more per pound as a raw material. What you get back: roughly half the weight for equivalent protection, and no rust — which matters for a part that lives in road spray and salt.
Does insurance cover underbody damage?
Comprehensive/collision policies often cover it minus your deductible — but a deductible plus a premium hit frequently costs more than the plate that would have prevented the claim. Cat theft specifically is a comprehensive claim, and per Carfax runs $1,000–$3,500 to repair.
Price it for your vehicle
Every price above is live on our site — browse skid plates by vehicle (F-150, Super Duty, Ranger, Expedition, Chevy/GMC, ProMaster, Sprinter and more), or call/text (970) 341-4221 and we'll spec coverage for your truck or van. In the Denver area, our Wheat Ridge shop installs what we build.
Sources
- Juggernaut USA list pricing, July 2026 (live on the linked product pages)
- Carfax — catalytic converter theft replacement costs
- MatWeb — Aluminum 5052-H32 material properties
Fitment varies by model year, wheelbase, and roof height. Always confirm your exact configuration before ordering — we check fitment free with every quote.
1/4" 5052-H32 aluminum, powder-coated, bolt-on, lifetime warranty, free continental-US shipping — or have us install it at our Denver shop.
