Ford F-250 & F-350 Skid Plates: The Super Duty Buyer's Guide.

Your Ford F-250 or F-350 can pull tens of thousands of pounds and ford a creek — but from the factory, most of a Super Duty's drivetrain is hanging in the open with little more than a thin OEM splash shield between an expensive transmission and the next rock you don't see. The F-250 through F-600 is built to work, tow, and increasingly to overland — which means the underbody takes hits the engineering team never priced into a stock shield. This guide walks through what's exposed on the current-generation Super Duty, where the factory coverage stops, how fitment differs across the F-250/350/450/550/600 range, and the six things that actually matter when you choose a skid plate.

This is a buyer's guide for plates we manufacture and sell today. We'll keep it honest: what's worth protecting, what isn't, and how to tell a real skid plate from a decorative one.

Jump to: What's exposed underneath · The factory coverage gap · Fitment by trim and generation · How to choose (6-point checklist) · The full Juggernaut lineup · Spec table · The install · FAQ · Get yours

What's exposed underneath your Super Duty

Lie down behind the front axle of a stock Super Duty and you'll see how much hardware sits in the line of fire. On 2017 and newer trucks, the vulnerable zones are:

• Engine oil pan and oil filter — the pan is the lowest-hanging casting up front, and the oil filter hangs right there with it. A cracked pan or a sheared filter on a 6.7L Power Stroke or 7.3L Godzilla means immediate oil loss and a very expensive day.
• Transmission cooler — mounted low in the front airflow where it catches whatever the road throws first. A punctured cooler dumps transmission fluid fast, and you may not notice until the damage is done.
• Transmission — the 10-speed automatic sits just behind the engine and is exposed to anything that gets past the front skid line.
• Transfer case (4WD) — on 4x4 trucks the transfer case housing is aluminum and unforgiving of a direct hit.
• Fuel tank — a large, low, mostly-plastic tank that's an easy target for trail debris and road junk on lifted or loaded trucks.
• Exhaust and after-treatment — the DPF/SCR plumbing on diesels and the catalytic converter on gas trucks both sit underbody and exposed.

The Super Duty's sheer weight works against you here. A loaded one-ton coming down on a rock or a hidden stump carries a lot more energy into the underbody than a half-ton does, so the case for real armor is stronger, not weaker, than on a lighter truck.

The factory / OEM coverage gap

Ford ships the Super Duty with thin stamped-steel or plastic splash shields, and even the available off-road packages cover only the front of the drivetrain — typically a front engine-area shield and not much else. There are three problems with relying on that:

• It's front-only. Factory coverage tends to stop forward of the transmission. The transfer case and fuel tank — both genuinely exposed — are usually left bare.
• It's thin. A stamped shield is designed to keep mud and water off components, not to take a sustained impact. It deforms into the part it's supposed to protect.
• It's a wear item. Factory shields rust, crack, and get torn off, and replacing them is a parts-counter expense — not protection you keep for the life of the truck.

A dedicated skid plate system is built to do a different job: spread and absorb a real impact across full underbody coverage, not just deflect spray off the front of the engine. If you want the deeper material comparison, see our breakdown of aluminum vs. steel skid plates.

Fitment by trim and generation

Ford reworked the Super Duty for 2017 and updated it substantially again for 2023 — the 2023+ trucks are often considered a new generation in their own right, not just a refresh. Across that range, a few fitment realities matter when you're choosing plates:

• F-250 and F-350 are closely related and generally share underbody architecture, so coverage for one typically carries over to the other — but always confirm your specific year and configuration.
• F-450, F-550, and F-600 ride on the wider commercial/fleet chassis — and our 2020+ plates are engineered to cover the full F-250 through F-600 range. Confirm your configuration and we'll verify the fit.
• Engine matters. The 6.7L Power Stroke diesel, 7.3L Godzilla gas V8, and the older 6.2L gas each have their own packaging under the truck. Your engine choice affects which plates apply and how the underbody is laid out.
• 4WD vs. 2WD determines whether you have a transfer case to protect at all.
• The 2023 update — widely regarded as a new generation rather than a simple refresh — changed enough that you should treat 2017–2022 and 2023+ trucks as distinct for fitment purposes.

The honest takeaway: Super Duty fitment is specific. Before you order, confirm your year, cab/chassis configuration, engine, and drivetrain — or send us those details and we'll confirm it for you.

How to choose a skid plate: the 6-point checklist

Most "skid plate" listings online fail at least one of these. Run any candidate — ours included — through all six:

1. Coverage. Does it protect the full underbody — engine/oil pan, transmission, transfer case, and fuel tank — or just the front? Front-only armor leaves your most exposed components bare. On the Super Duty, full coverage is the whole point.
2. Thickness. Thicker plate absorbs more before it deforms into the part behind it. A lot of the market runs 3/16" aluminum; we run a full 1/4" (0.250" / 6.35mm). The difference is real on a heavy truck.
3. Alloy. "Aluminum" is not a spec. We use 5052-H32 marine-grade aluminum — a named, corrosion-resistant alloy chosen for impact and weather, not whatever a supplier had cheapest.
4. Finish. Ask whether it ships bare or coated. Bare aluminum oxidizes and looks rough fast. Ours is powder-coated black as standard, not as an upcharge.
5. Serviceability. You still have to change oil and service the truck. Good plates account for drain and filter access — ours have removable access panels so oil changes don't mean pulling the armor.
6. Warranty. A one-year warranty tells you what the maker expects to fail. We back our plates with a lifetime warranty. If a skid plate isn't warrantied for the life of the truck, ask why.

The full Juggernaut Super Duty lineup

Every plate we make for the 2020+ Super Duty, front to back:

Front valance skid plate — shields the low front approach, including the transmission cooler zone that catches road debris first.

Engine & transmission skid plate — covers the oil pan, oil filter, and transmission, with a removable panel for oil and filter service.

Transfer case skid plate — closes out the driveline on 4WD trucks.

Fuel tank skid plate — replaces the factory fiberglass shield, in 34-gallon short-bed and 48-gallon long-bed versions (F-250/F-350).

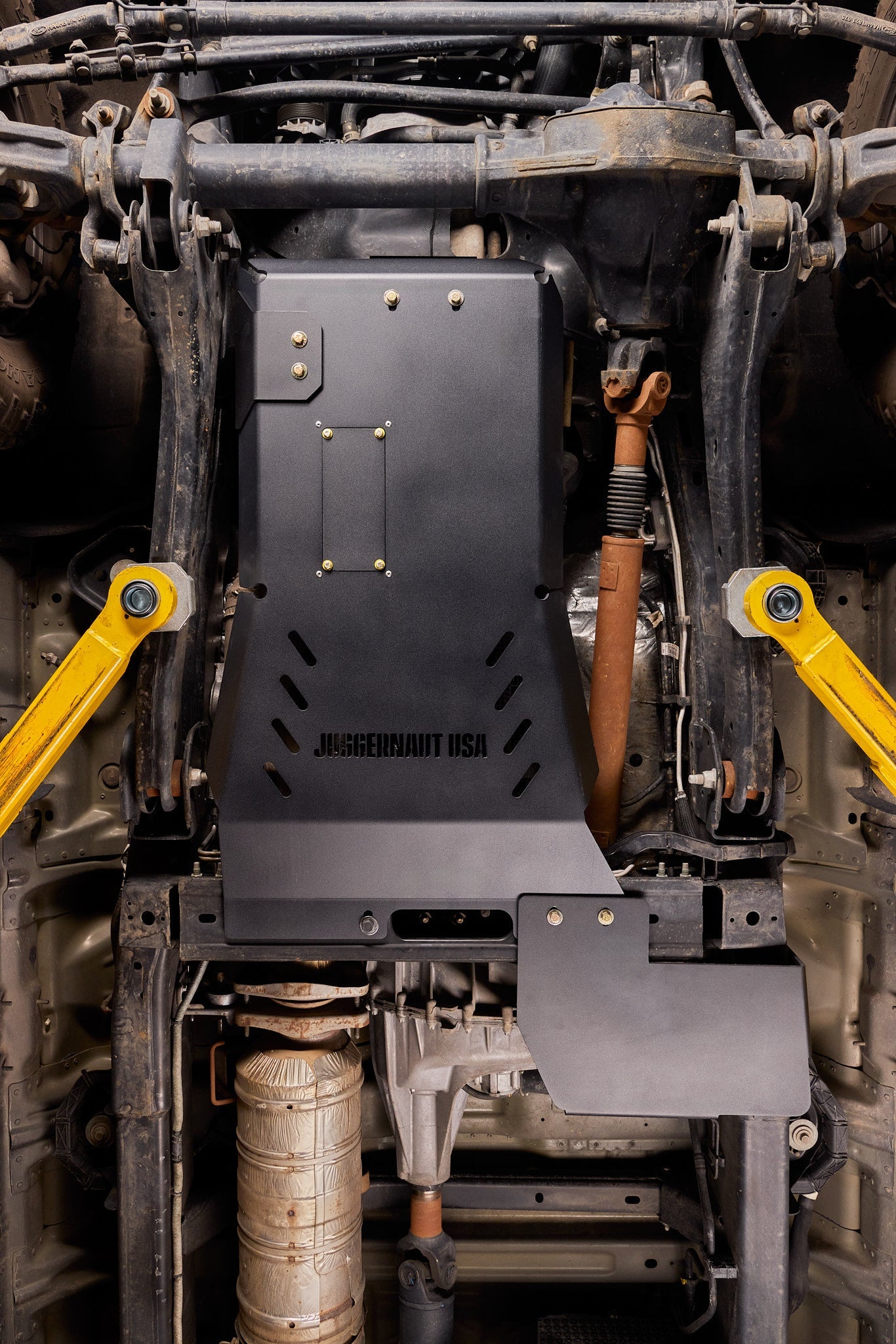

The full package — engine/trans + transfer case coverage in one kit, the configuration most Super Duty owners land on.

Or browse everything in the Super Duty collection.

Juggernaut Super Duty skid plate spec

The install

Every Super Duty plate is a true bolt-on to existing frame points — no drilling, no cutting, hardware included. Watch the full install video or follow the written step-by-step instructions. In the Denver area? Our Wheat Ridge shop will do it for you.

Frequently asked questions

Will these plates fit my F-450, F-550, or F-600?
Yes — our 2020+ Super Duty plates are built to cover the full F-250 through F-600 range. The commercial chassis has its own quirks, so send us your exact model, year, and engine and we'll verify fitment before it ships.

Do I need to protect the catalytic converter on a Super Duty?
It depends on your engine. A 7.3L Godzilla gas V8 has a catalytic converter that can be a theft target, so a cat shield is worth considering. Diesel after-treatment is a much lower theft target, so on a 6.7L Power Stroke the priority is impact armor for the oil pan, transmission, and fuel tank.

Will adding skid plates affect oil changes or service?
No. The engine & trans plate has a removable access panel for the oil drain and filter, and every plate bolts on and off for bigger service. Tell us your configuration and we'll make sure you have access to what you need to maintain.

Is aluminum strong enough for a one-ton truck?
Yes — at the right spec. Our 1/4" 5052-H32 plate is built for impact, and aluminum saves meaningful weight versus steel while resisting corrosion.

Do these require drilling?
No. Our Super Duty plates are bolt-on with no drilling required, using existing mounting points. They're a straightforward DIY install with hand tools, or we can install them for you.

Can you install them for me?
Yes. We run a full-service 4x4 install shop at 4840 Van Gordon St Unit #300, Wheat Ridge, CO. Call or text (970) 341-4221 to book.

Protect your Super Duty

The Super Duty is a workhorse: these trucks are expensive, they work hard, and the factory leaves too much underbody exposed. Full coverage in 1/4" 5052-H32 aluminum — powder-coated, bolt-on, lifetime warranty, built in Colorado — is the difference between a scraped plate and a cracked oil pan. Shop the Super Duty skid plate collection, then confirm your year, cab, and engine. Not sure what fits? Email sales@juggernautusa.com or call/text (970) 341-4221 and we'll sort it out — and we can install it for you at our Wheat Ridge shop.
